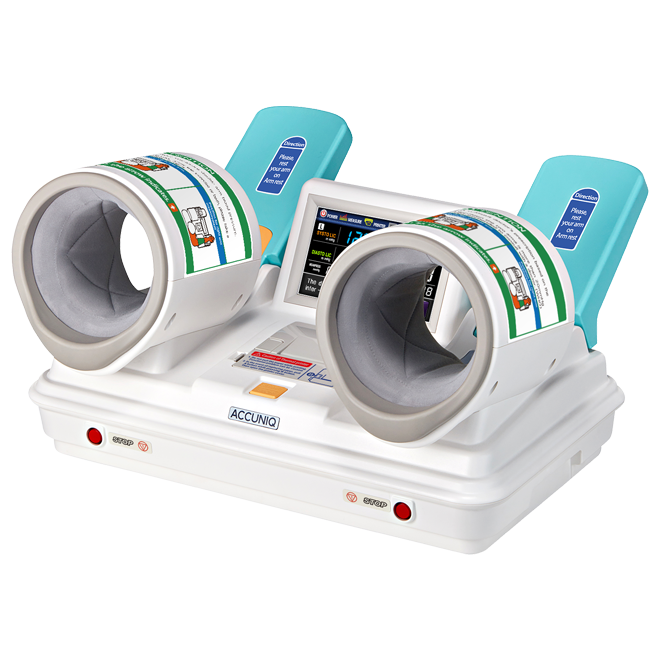

ACCUNIQ BP850
Blood pressure monitor capable of measuring both arms
ACCUNIQ BP850 is a blood pressure monitor that measures the blood pressure of both arms with one measurement to compare the difference in blood pressure.
Feature
-
Color LCD screen
The 7-inch wide color LCD screen clearly shows the measurement results. As it is possible to check the QR code after measurement, you can manage blood pressure data using a mobile device.
-
Exhaust measurement method
It is an exhaust measurement method (downward decompression type) that measures blood pressure while pressurizing it to a certain pressure and lowering the pressure of the cuff. It has low noise, short measurement time, and high accuracy and reproducibility.
-
Easy to use
An exclusive hand switch and foot switch are basically provided for convenient measurement when measuring blood pressure on both arms.
-
Thermal printer
A thermal printer is installed as standard, so you can print the results and can replace the paper easily.
-
One-arm and both-arm measurement mode
It is also possible to measure the left or right arm only on the situation, as well as measurement on both arms.
-
Link to impedance body composition analyzer
It is compatible with all of our impedance body composition analyzers.
Product Information
ACCUNIQ BP850 is a blood pressure monitor that can measure blood pressure on both arms.
With a 7-inch wide color LCD screen, you can check precautions and the measurement process on the screen,
and when the measurement is complete, you can scan the QR code to save the results to your mobile phone.

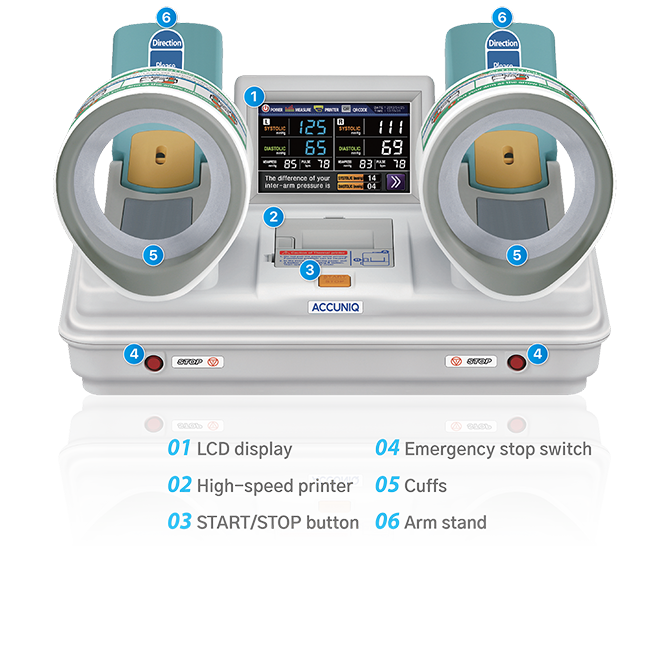

Product overview
Measurement on both arms
ACCUNIQ BP850 is a blood pressure monitor capable of measuring both arms that provides the difference between the blood pressure and pulse rate of both arms as a numerical value. You can check the difference in blood pressure between two arms more conveniently compared to measurement on the right and left arm separately.
You can measure either the left arm or the right arm only depending on your needs.

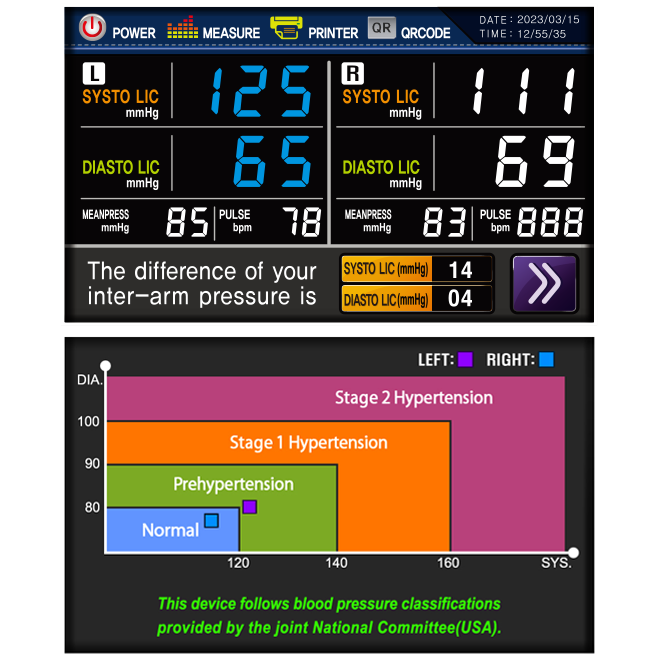

Result screen
When measuring both arms, it displays the systolic and diastolic blood pressure, average blood pressure, and pulse of the right and left arms, and the difference between the systolic and diastolic blood pressure of the right arm and the left arm.
It provides a graph of which level corresponds to the classification criteria table (JNC 7) of blood pressure set by the US Joint National Committee.
※ The blood pressure difference between the arms is a reference value, not a value measured with a blood pressure monitor.

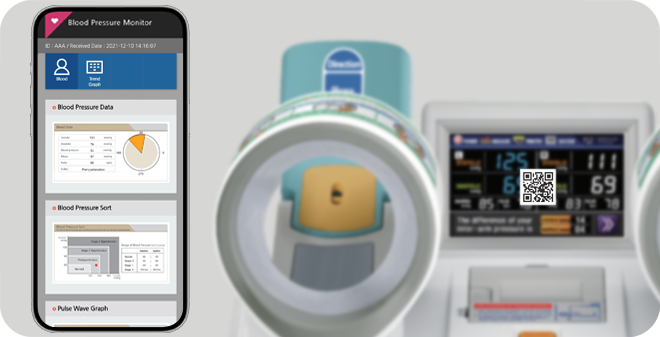

View results on your smartphone with a QR code
After blood pressure measurement is completed, you can use your smartphone to scan the QR code on the screen and save the measurement result to your phone.

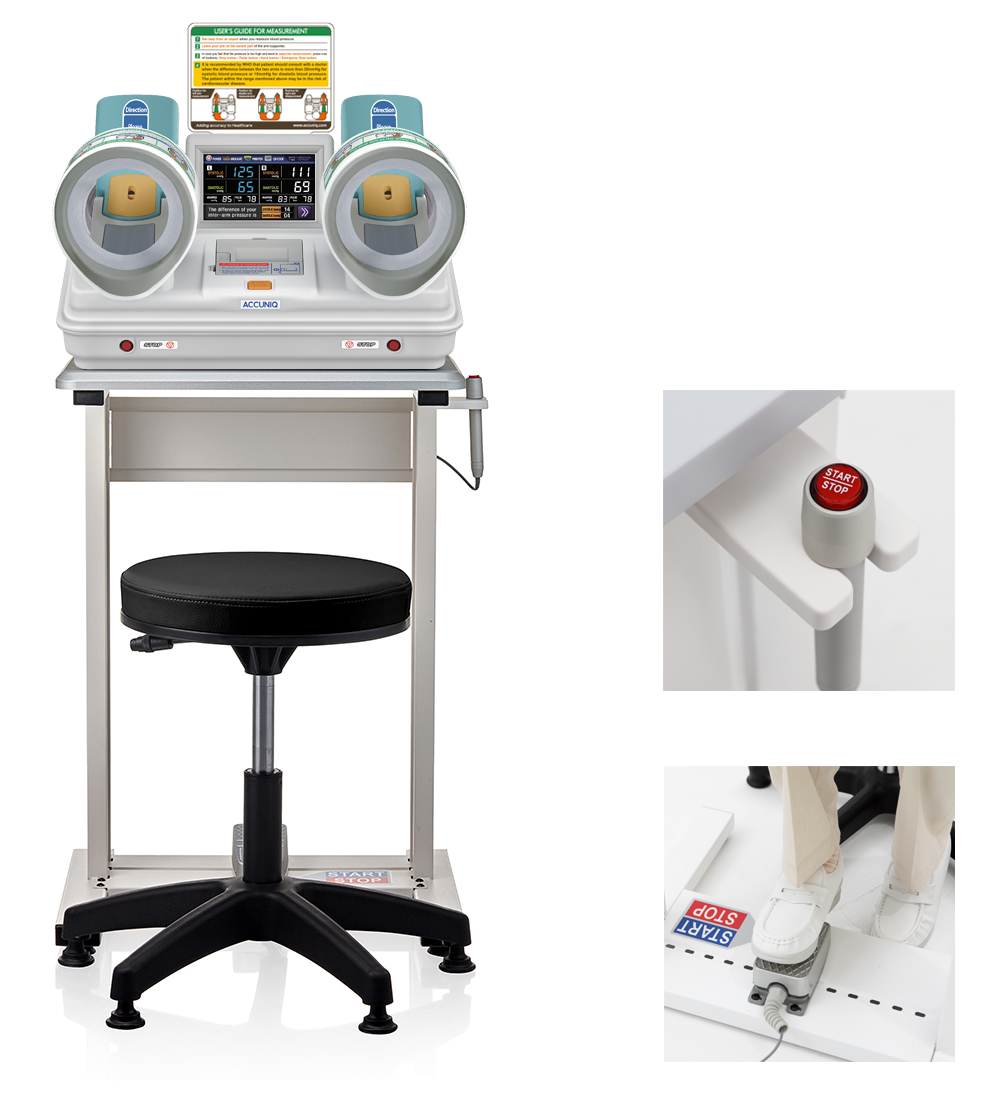

Exclusive table and height-adjustable chair
The exclusive table and height-adjustable chair is provided together. The exclusive table includes a foot switch and a hand switch for more convenient measurement.

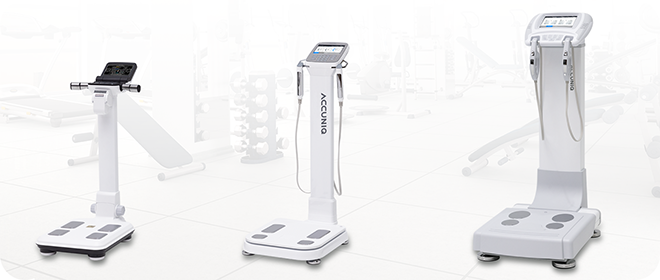

Link to impedance body fat analyzer
It is compatible with all of our impedance body fat analyzers.
※ This product is a medical device, which is an optional product sold separately.

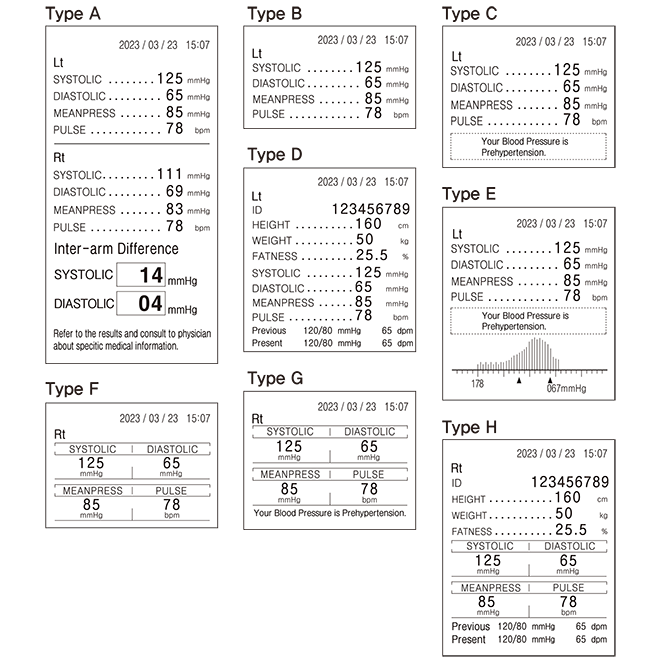

Option to provide result sheets
You can print out the result sheet with an optional thermal printer, and change the result sheet type in the settings.
-
Maximum blood pressure
It is the pressure that blood vessels receive when the heart contracts to pump blood, which is called ‘systolic blood pressure’.
-
Minimum blood pressure
It is the pressure exerted on the blood vessels when blood returns to the heart, which is called ‘diastolic blood pressure’.
-
Average blood pressure
It is the median between systolic and diastolic blood pressure. (Value obtained by adding 1/3 of the difference between systolic and diastolic blood pressure to diastolic blood pressure)
-
Pulse rate
It indicates the number of beats per minute of the heart.
-
Blood pressure difference
It refers to the difference in blood pressure between the two arms for each systolic and diastolic pressure. (The blood pressure difference between the arms is a reference value, not a value measured with a blood pressure monitor.)
※ For interpretation and diagnosis of blood pressure measurement results, please be sure to consult with a specialist.
Precautions when measuring blood pressure
-
팔을 바르게
넣고 측정 -
측정 전
5분간 안정 -
측정중
대화,움직임 금지 -
커브의 압력이
정상이상으로 높다면,
I/O 버튼을 눌러 급속배기 -
다리를 꼬거나
책상다리, 낮은 탁자에서
측정하지 않도록 한다 -
재측정은
3~5분의 간격 -
추위는 혈압을
상승시키므로
실온에서 측정 -
측정 전 흡연,
커피 섭취 금지 -
매일 같은
조건으로 측정 -
옷이 팔뚝을
조이지 않게 -
수면부족, 변비는
혈압을 올림 -
두꺼운 상의는 탈의,
가급적 맨살에 커프 착용
Product specifications
- How to measure
- Oscilometric
- Measuring range
- Pressure 30~300 mmHg
Pulse 30~200 bpm
- Precision
- Pressure ± 3 mmHg or less than ± 3 %
Pulse within ± 3
- Weight
- About 12 kg
- Transmission media
- USB 2.0 terminal, RS-232C serial port
- Result items
- Measurement on one arm: Systolic blood pressure, Diastolic blood pressure, Average blood pressure, Pulse, Evaluation, Pulse wave pattern
Measurement on both arms: Systolic blood pressure, Diastolic blood pressure, Average blood pressure, Pulse, Pulse wave pattern, The blood pressure difference between the arms
- Result check
- 7inch LCD display, thermal result sheet
- Basic components
- Main body, Power cable and adapter, Quick start guide, Measurement information board, Thermal printer and thermal paper, Blood pressure monitor cart
- Optional items
- Chair, Thermal paper
※ The above information is subject to change without notice to improve appearance
and product performance.
※ This product is a ‘medical device’, so please read ‘Precautions for use’
and ‘How to use’ carefully before use.
