Blood Pressure Monitor Technology

Clinically validated
The core technology and value of a blood pressure monitor is
directly related to the accuracy of its measurement.
국제 임상 완료
Clinically certified as accurate
ISO 81060-2:2018/Amd 1:2020 Non-invasive sphygmomanometers
Clinically validated

ACCUNIQ's blood pressure monitor has passed
the ISO 81060-2:2018/Amd 1:2020 performance assessment,
the international validation protocol for non-invasive
blood pressure monitors.

It is recognized for its precision and reliability as
a top-notch medical device used by leading medical organizations,
lauded for its accuracy and dependability.

Clinically validated products
Model Name Result Protocol
BP500 PASS ISO 81060-2:2018/Amd 1:2020
BP501 Equivalence Certificate
BP503 Equivalence Certificate
ACCUNIQ BP600 Equivalence Certificate
ACCUNIQ BP650 Equivalence Certificate
ACCUNIQ BP651 Equivalence Certificate
ACCUNIQ BP653 Equivalence Certificate
Blood pressure
Definition of blood pressure

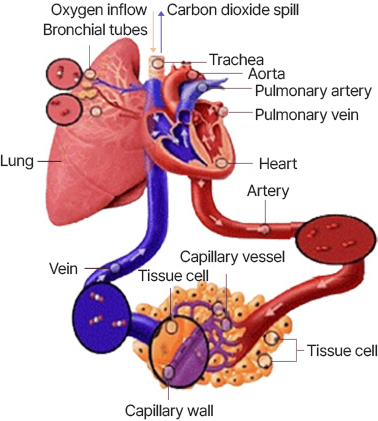

Blood pressure is the pressure exerted on the walls of blood vessels when the blood pumped out by the heart flows through them.
Blood pressure plays a role in circulating blood so that oxygen and nutrients that our body needs can be supplied to each part of our body,
so if blood is not circulated, the body cannot function properly.

심장
수축기혈압
Systolic blood pressure
(maximum blood pressure)

The pressure exerted on the blood vessels when
the heart contracts and pumps blood,
which represents the highest level of blood pressure.

이완기혈압
Diastolic blood pressure
(minimum blood pressure)

The pressure at which the heart is full of blood,
which represents the lowest level of blood pressure.

Launched Korea’s first automatic electronic blood pressure monitor for hospitals

ACCUNIQ (formerly Jawon Medical) developed a fully automatic blood pressure monitor (model name: FT-300S, FT-200S) for hospital use for the first time in Korea in 1996. FT-300S, FT-200S)

국내 최초 병원용 자동전자혈압계 출시
ACCUNIQ's technology and know-how

Based on ACCUNIQ's technology and know-how, about 100,000 in Korea and 50,000 overseas automatic blood pressure monitors are supplied to universities, general hospitals, clinics, oriental medicine clinics, nursing homes, public health centers, sports centers, government offices, schools, banks, subways, and resting facilities.

ACCUNIQ의 기술력과 노하우

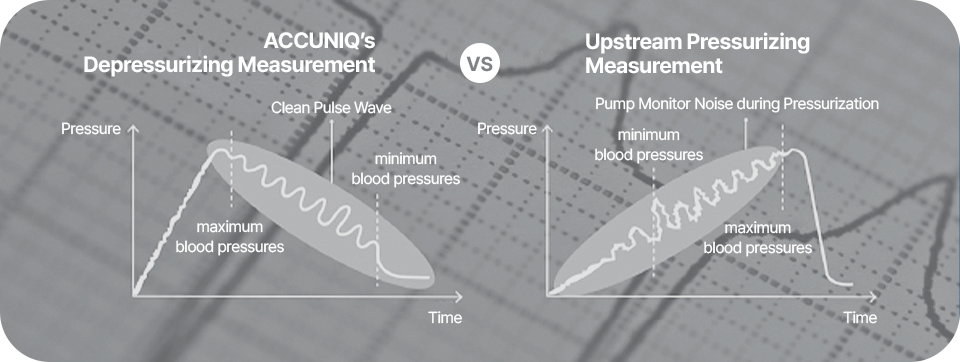

ACCUNIQ blood pressure monitor pressure monitor measures blood pressure in an oscillometric method.
When a cuff is wrapped around the arm, air pressure is applied to the cuff, and air pressure is slowly released, the pressure vibration generated
in the cuff above the arterial vessel is detected and recorded by the pressure sensor to measure blood pressure.
It has the advantages of not causing noise during measurement, a blood pressure measurement method taking care of the basics, short measurement time,
and high accuracy and reproducibility. On the contrary, the upward pressure measurement method has noise generation due to motor pressure during measurement,
so it takes a long time to measure. Also, if noise or movement occurs, the error rate is high, and accuracy and reproducibility may be low.

오실로메트릭 방식
ACCUNIQ blood pressure monitor pressure monitor
in an oscillometric method

As ACCUNIQ blood pressure monitor pressure monitor is pressurized with a single button,
anyone can easily measure blood pressure without others’ help, and the measured value is displayed in numbers, making it easy to use.

ACCUNIQ의 기술력과 노하우
Easy to use

Both-arm blood pressure
measurement technology

The both-arm blood pressure monitor is a diagnostic device that helps in diagnosing cardiovascular-related diseases
by simultaneously measuring both arms’ blood pressure as well as basic blood pressure.

Both-arm blood pressure measurement

WHO recommends consulting a doctor when the difference between
the results of the two arms’ blood pressure measurement under
the same condition is more than 20 mmHg in systolic blood pressure
or 10 mmHg in diastolic blood pressure, as there is a risk
of circulatory system disease.

양팔 혈압측정

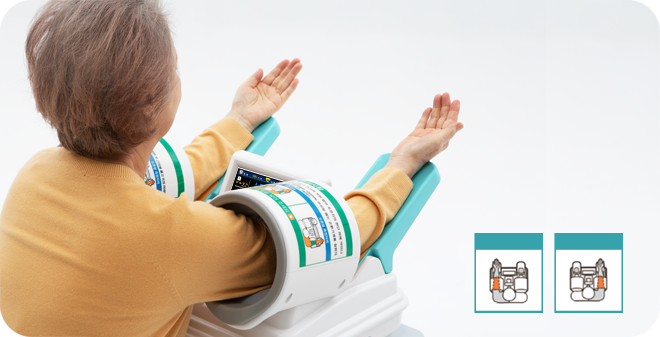

ACCUNIQ both-arm blood pressure monitor

Measure both arms at the same height

Pressurized with the same pressure in the same area

This product is suitable for measuring blood pressure on both arms, which requires pressure and measurement at the same time.

ACCUNIQ 양팔혈압계
